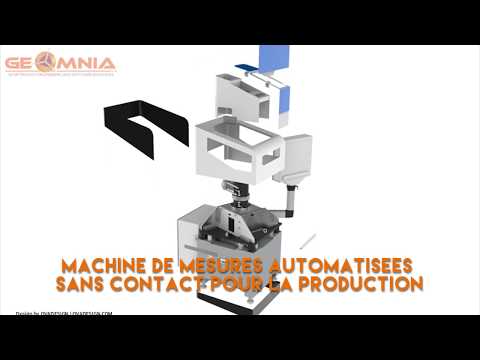

PRECILINE AB : The freeform measuring platform
The PRECILINE AB delivers outstanding performances when it comes to measuring free forms.Ranging from aircraft reactor blades to steering column slides, the PRECILINE AB will support you throughout your quality approach.
Interface
The PRECILINE AB comes with a 21" touch screen as well as an intuitive HMI, guaranteeing a straightforward and efficient use.
Vibration cancelling
The PRECILINE AB offers an air damping system to cancel vibrations. Thus, it can be used directly on the factory floor without any particular restrictions.
Scanning
The PRECILINE XZT makes use of two 2D profilometers guaranteeing a precise yet flexible measurement.
Specifications
| COMMAND UNIT | |
|---|---|
| Motors and servodrive | 4-axis Geobrick servodrive (Delta-Tau) |
| Computing | Windows 10® 64 bits - Intel core i7 - 21" touch screen |
| Capacity and motion | |
|---|---|
| Dimmensions | 280mm (H) x 160mm (Diameter) |
| Weight | 15kg maximum |
| Rotation speed | Measure at 2 rot/s - Maximum speed of 6 rot/s |
| Z axis | Speed : 300mm/s - Thrust: 0.5g |
| Scanning and accuracy | |
|---|---|
| Maximum error | 1 to 5 µm depending on the measured feature |
| Rotation resolution | 1Vpp, 18000 traits |
| Rotation linearity | ± 3 ’’ |
| Z axis encoding | Optical incremental linear encoder. Resolution : 1µm. Linearity : 3µm |
| Acquisition method | Real time |
| Laser sensors | Keyence LJV-7080 - resolution 50µm - Repeatability 0.5 µm |
| Working condition | |
|---|---|
| Temperature | From 10°C to 40°C - 40°F to 104°F |
| Hygrometry | 75% maximum without condensation |
| Vibrations | The PreciLine-AB comes with a air damping system |
| Parts | Parts must be cleaned from oils, dust or any other contaminants that may disrupt the optical measurement. |
| Power supply | 230/240 V~ (±10%) ; 50-60 Hz |
