PreciLine XZT
PRECILINE XZT : the flexible contactless measurement system for catalytic converters from Geomnia.
PRECILINE XZT delivers uncompromising precision and quality assurance. It is capable of inspecting both substrates and assembled catalytic converters. Featuring outstanding scanning and vision technology PRECILINE XZT is the reference in-line & near-line canning measurement platform.
Automation
PRECILINE XZT comes with Allen-Bradley Ethernet/IP and Siemens Profinet support. It can receive part recipe from a PLC and automatically launch a cycle accordingly. Its handshaking process enables it to be embedded within a production line and work alongside robots.
Standalone use
PRECILINE XZT comes with its own panel and HMI allowing a standalone nearline or laboratory use. Multiple features such as advanced circularity graphics, average and local GBD graphics, PDF control report generation and SPC capability make it a great canning inspection system.

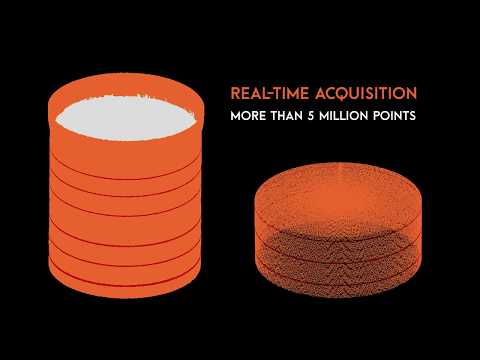

Scanning
PRECILINE XZT is equipped with two high-precision wide-range laser sensors guaranteeing a flawless and flexible measurement.
Vision
PRECILINE XZT makes use of high resolution cameras and 2D codes reader allowing fast part identification and defect detection such as chips, gouges and collapsed areas.
Specifications
| COMMAND UNIT | |
|---|---|
| Servodrive | 8 axis GeoBrick servodrive (DeltaTau) |
| Computing | Hight performance computer embedded in a panel with 24’ touch display |
| Capacity and motion | |
|---|---|
| Maximum part size | 340mm (H) x 330mm (Diameter) |
| Maximum weight | 15 kg |
| Rotation speed | Up to 1 rot.s-1 |
| X and Z axis speed | Up to 300 mm.s-1 |
| X and Z axis thrust | 0.5 G |
| Scanning accuracy | |
|---|---|
| Maximum error | 10 µm |
| Resolution | 2 x 800 points per profile |
| Profile count | 2 x 3600 profiles per rotation |
| Z axis encoding | HEIDENHAIN linear encoder ±0.5µm |
| Laser scanning | Keyence LJV-7300 (x2) : • Linearity error : 50µm • Points per profile : 800 • Resolution : 300µm • Repeatability : 1µm • Accuracy : 1µm |
| Features | |
|---|---|
| Cycle time | 12s to 16s |
| 2D Codes | DataMatrix, QR Code, Barcode |
| Substrate dimensions | Height Diameter Cylindricity Planarity |
| Additional substrate features | Face gouges detection Edge and side chips detection Angular reorienting |
| Canning dimensions | Average GBD Local GBD Constant zone measurement Height Runouts Diameter Cylindricity |
| Additional canning features | Chip detection Substrate collapsing detection |
| Working conditions | |
|---|---|
| Working temperature | 10°C to 40°C / 50°F to 104°F |
| Maximum working hygometry rate | 75% |
| Parts | Cylindrical shape Non-shiny finish |
| Power supply | 480V triple phase ; 50-60 Hz |
